AIO-2501/LP
Rovsco AIO-2501/LP is a 2-Diver portable Total Dive Control System with LP Air and complete Video system; all-in-one portable Pelican Case.
● Connector for Umbilical: MS3102-18-08S with the same pin-out & connections as the Leading Brand of Underwater Video Systems and commonly used by the commercial diving industry. You can use your present or our video cables, cameras and lights without any modification.
'AIO-2501/LP Video System is a 'PLUG-N-PLAY' for your present video umbilicals, 5-pin video cameras, and 3-pin LED Lights.'

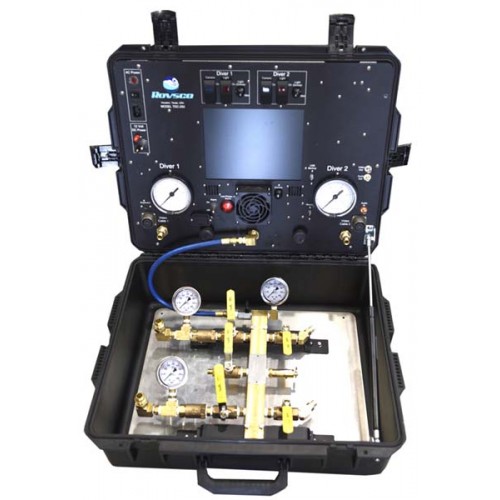

AIO-2501/LP is a combination of LP air control Unit and complete video System for 2 Divers; both beautifully packaged in one Portable Pelican Case. The Pelican Case is equipped with heavy duty Rolling Wheels and Telescopic Handle to enable portability from site to site.
Power: 110-240 VAC or 24 Volt DC (2x12 Volt Car Batteries)
'Rovsco offers finest and most Reliable range of Dive Air Control Units and Video Systems.'
AIO-2501/LP System includes:
(2) RDC-325/P, Fixed Focus Color Camera
(2) RDL-401 LED Light, 3000 Lumens (Eq. to 225 Watt Halogen), Fully dimmable
(2) RDH-60, Bracket & Handle
(2) RVC-2303-100M, 100 Meter (330 Ft.) Video Cable with Connectors
(2) Y-Cables
(1) AIOCON-2501/LP Console: LP Air Controller, Cross-Over Valve, Pneumo Gauges, Low Pressure Alarms; Complete Video System with 12 inch 1080-P 16:9 Color Monitor, Time/Date on Video Display, Back-Up on USB, Power Supply, Variable Light Control, HDD Recorder, 250G SSD Hard Drive. (OPTIONAL) Video Text Writer. All Beautifully Packaged in a Portable Pelican Case. 110-240 VAC, or 24 Volt DC (2x12 Volt Car Batteries)
(1) Grounding Cable
(1) User Manual
AIOCON-2501/LP Air Panel Main Features:
• Cross-over Valve Diver 1 -Diver 2
• Individual Low Air Pressure Alarm for Diver 1 and Diver 2
• Pneumo/Depth Gauges 4.5 inch (115 mm) diameter
• Pressure Gauges 2.25 inch (57 mm) diameter.
AIOCON-2501/LP Video Panel Main Features:
• Power: 110-240 VAC, or 24 Volt DC (2x12 Volt Car Batteries)
• 12 inch Sun-Readable High Definition 2000 NIT Color monitor
• 250G SSD Drive (500G SSD Optional)
• Time/Date Display
• (OPTIONAL) Video Text Writer
Options:
• Video Text Writer
• 3-Part Umbilical
• RDC-325/SS Stainless Steel Cameras
• RDC-400/P Wide Angle Color Camera
• High Intensity LED Light RDL-450 (5850 Lumens, eq. to 440 Watt Halogen)
• 500G SSD
• Customer Requested Cable Lengths
• Customer Requested Air Fittings
• Model RDC-325/P Fixed Focus Color Camera
□ Mechanical
▪ Diameter: 1.62 inch (41 mm)
▪ Length: 5 inch (127 mm) excluding connector
▪ Housing Material: Black Delrin
▪ Front Port: Sapphire
▪ Depth Rating: 2000 Meter (6,560 ft)
▪ Weight in Seawater: 2.4 oz. (0.068 kG)
□ Electrical
▪ Voltage: 12-18 Volt DC
▪ Power: 107 ma @ 12 Volt DC
□ Connector
▪ Standard Connector: XSK-5-BCL
▪ Mate for Standard Connector: RMK-5-FS
▪ Standard Pin Out:
Pin 1: Video
Pin 2: (-) Ground (Common)
Pin 3: Power (+) 12-18 Volt DC
□ Camera Video/Optical Properties
▪ Image Sensor: 1/3 in. Sony DSP CCD
▪ Sensitivity: .001 lux @ f1.4
▪ Resolution: 750 TV Lines
▪ Video Out: 1.2 V p-p
▪ Lens: 3.6 mm, F1.2, Electronic Auto Iris
▪ Focus: Fixed 4 in. to infinity
▪ Format: NTSC
▪ Horizontal FOV: 72 degrees (in Seawater)
• Model RDL-401 LED Light, 3000 Lumens (Eq. to 225 Watt Halogen), Fully Dimmable
□ Connector
▪ Standard Connector: 3 Pin XSG-3-BCL
▪ Mate to Standard Connector: RMG-3-FS
▪ Standard Pin Out:
Pin 1: Power (+) 24 VDC
Pin 2: Power (-) Ground (Common)
Pin 3: 0-24 VDC Dimmer
□ Mechanical
▪ Weight: 12 oz. (0.34 kG) in air
3.7 oz. (.105 kG) in seawater
▪ Housing Material: Hard Anodized Aluminum
▪ Front Port: Acrylic
▪ Depth Rating: 1000 Meter (3,250 ft)
□ Electrical
▪ Voltage: 24 Volt DC
▪ Power Consumed: 1.16 amps @ 24 VDC
□ Light Output: >3000 Lumens (Eq. to 200 Watt Halogen)
● Model RVC-2303 Video Cable
□ Length: 330 Ft. (100 M) Standard
□ Conductors + RG-59 Coax
□ Breaking Strength: 1400 Lbs. (635 kG)
□ Outer Jacket: Orange Colored Polyurethane
● Model AIOCON-2501/LP Console
◊ VIDEO
□ Panel Connector for Video Cable: 8-Pin MS3102-18-08S
□ Video Recorder: 250G SSD (500G SSD Optional)
□ Light Control: Variable Light Intensity Control 0 -100%
□ Monitor: 12 inch, HD Color w/Audio, 1080-P Resolution
□ Monitor Brightness: Sun-Readable 2000 NIT
□ Safety: Low Voltage to Diver
□ Connections: All Beautifully Laid-Out for quick access
◊ AIR CONTROLS
□ Safety:
Relief Valve at Air Supply Input
Low Air Pressure Alarm (Visual and Audio)
□ Pressure Gauges
LP Range 0-600 Psi
Diameter 64 mm (2.50 inch)
□ Depth Gauges
Range 0-70 Meter (0-230 Ft)
Diameter 4.50 inch (114 mm)
□ LP Air Inlet: #10 JIC (Male), (OPTIONAL) #8 JIC Male
□ LP Air to Diver: #6 JIC (Male), (OPTIONAL) O2 Fitting
□ Pneumo: O2 Fitting, (OPTIONAL) #4 JIC Male
◊ Mechanical
□ Enclosure Weather Resistant Pelican Case with Telescopic
Handle and Heavy Duty Roller Wheels
◊ Electrical
□ Power 110-240 VAC, or 24 Volt DC (2x 12 Volt Car
Batteries)
● Options:
□ Stainless Steel Color Camera RDC-325/SS
□ RDC-400/P Wide Angle Color Camera
□ High Intensity LED Light RDL-450 (5850 Lumens)
□ 500G SSD Hard Drive
□ Customer Requested Connectors
□ Customer Requested Video Cable Length
□ Customer Requested Air inlet/outlet Fittings
